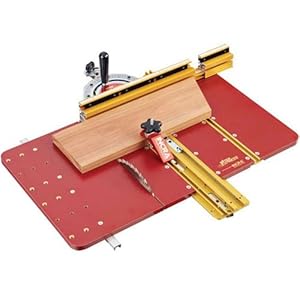

INCRA ME/1000SE Miter Express and Miter1000 SE Combo Pack

Product Details

• Product Dimensions: 26.5 x 14.5 x 6 inches ; 21.2 pounds
• Shipping Weight: 21.4 pounds (View shipping rates and policies)
• Shipping: This item is also available for shipping to select countries outside the U.S.
• Shipping Advisory: This item must be shipped separately from other items in your order. Additional shipping charges will not apply.
• ASIN: B002GU68C6
• California residents: Click here for Proposition 65 warning.
• Item model number: ME/1000SE


By : Incra
List Price : $259.95
Price : $222.48
You Save : $37.47 (14%)

Product Description

From the Manufacturer

Get the max savings on the INCRA Miter Gauge Combo Pack. The package includes the INCRA Miter 1000SE plus the INCRA Miter Express. This combination of two great INCRA crosscutting tools is incredibly practical and convenient. When mounted to the Miter Express, the Miter1000SE can easily crosscut 24" deep panels, offers the increased control of using a sled, and allows great safety for cutting small parts using the Miter Express' heavy duty hold down clamp and T-slots that easily accommodate shop-made jigs and fixtures. The Miter 1000SE can also be removed from the Express sled in seconds and used by itself for quick solutions to a variety of operations, such as working at a router table or cutting bevels with the saw blade tilted.

This value-priced combo includes the Miter 1000SE gauge and the Incra Miter Express. Enjoy unmatched miter gauge precision combined with a sliding table with workpiece support on both sides of the blade.The Miter 1000SE lets you achieve mitering accuracy you never thought possible. 41 angle stops in 5 degrees increments over a full 180 degrees range. Miter bar adjusts to any standard 3/4" x 3/8" slot. Stainless steel primary scale. 1/10-degree vernier cursor. Incremental fence with patented rack positioning control telescopes from 18" to 31". Dual-arm flip shop stop.The Miter Express is the safest and most accurate crosscutting and mitering platform available, providing smooth-sliding zero-clearance cuts. Features two embedded T-Slot channels to secure the included hold-down clamp and outboard fence support. Superb crosscut and mitering control. Doubles any miter gauges crosscut range up to 24". Safely handles extra large and small workpieces. Eliminates all side play between table saws miter slot and any miter gauge. Eliminates all drag between workpiece and table saw, especially for extra large workpieces. Made in USA.

Technical Details

• Dock ; Lock the included INCRA Miter Gauge in Seconds
• Removable t-slot retaining clips ; adjustable miter bar
• GlideLOCK Miter Bar - The Miter 1000SE's 6 expansion disks adjust both sides of the bar for ZERO side play, anti-friction travel on all table saws with standard miter gauge channels
• Special Edition Telescoping INCRA-LOCK Fence
• Special Edition 1/10th° Vernier Cursor



INCRA ME/1000SE Miter Express and Miter1000 SE Combo Pack



Costumer Reviews

The miter express sled is all that I expected. It works well with the Incra miter gauge as well as an older Rockler model. The setup is straight forward and it allows you to cut pieces, especially smaller pieces safely, which is what I needed.

The gauge has very good accuracy across the horizontal plane. Repeatability is excellent. Once it is setup and adjusted, it stayed locked in the whole time. My complaint is that the mounting bracket between the fence and the protractor was not square. The vertical angle of the fence was set back about 2 to 3 degrees. If you cut flat against the bottom portion of the fence or only make straight cuts, there are no problems. Now, if you cut at any angle other than 0 degrees and use the full height of the fence, the cut will not be straight. The higher the protractor angle, the bigger the problem.

The instructions tell you how to shim the gauge to get it perpendicular to the table, but it's not as easy as it sounds. Since the bracket's vertical angle is not consistent across the face, you need multiple shims of different values on either side of the bracket. I contacted Incra support and they quickly replaced the original bracket with one that was better, but still not at 90 degrees. I ended up taking the bracket to a local machine shop and they milled it to a perfect 90 degrees across its entire length. Now it works like I expected for a fence from this highly regarded manufacturer. At the price they charge for this miter gauge and fence, I shouldn't have to spend an additional $30 to have it brought into proper alignment.

I use this unit on a Bosch 4000 jobsite saw. I believe that for the money, and the size, you can't beat this unit. Any other sled and gauge combination would be too large for a jobsite saw; however, this unit is perfectly sized for it.

The setup and calibration will take you approximately 45 minutes. For the bosch, it was a bit confusing since the tilt on the saw is opposite to how the unit is setup (although they include some instruction on how to flip that).

I am rating it at 4 stars because of one flaw that I find to be foolish. Every adjustment on the unit is made via an allen wrench screwdriver that is included, except for the non-moving part of the sled. It requires a tiny allen wrench to remove the unit from your saw table top (something I do every time as my saw travels from job to job). I wish the allen wrench screws would have been sized the same as the screw driver included, so that way it would only require one tool to adjust or remove the unit.

For repeatable cuts -- the crosscut sled (once calibrated) with the shop stops cannot be beat. It's simple to just churn out cut after cut with precision repeatability.

For the cabinet maker or finish carpenter who plans to use the unit at the jobsite, I completely recommend it. If you have a cabinet saw, or larger saw, I'd recommend going with a larger unit so that you can utilize more real estate.
